DYNAFORM is a simulation software solution, which allows organizations to bypass soft tooling, reducing overall tryout time, lowering costs, increasing productivity & providing complete confidence in die system design. It also allows for the evaluation of alternative and unconventional designs & materials.
DYNAFORM Version 6.0 is Now Available!
DYNAFORM 6.0 is the sixth-generation DYNAFORM product. It provides a user-friendly and intuitive interface with a streamlined design. The analysis process is fully based on the stamping process, which requires less CAE knowledge, and minimum geometry and element operations. This latest release offers the following features and improvements:
- Intuitive and Streamlined Interface
- Tree Structure to Manage Operation
- Simulation Data Manager
- Customized Icons Grouping for Drop-down Menu Functions
- Separate and Independent Application
- Unified Pre and Post Processing
- Multi-Window View
- Access Functions Using Right Mouse Button Clicks
- Supports Large Forming Simulation Models
- Geometry Manager
- Process Wizard for Blank Size Engineering
- Minimum Geometry and Elements Operations
- New Material Library Window
- New Drawbead Shape and Library
- Coordinate System Manager
- Instant Section Cut
- Tata Steel FLD
- Balloon Label
- PowerPoint and Excel Based Automatic Formability Report Generation

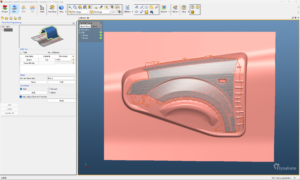

Blank Size Engineering (BSE)

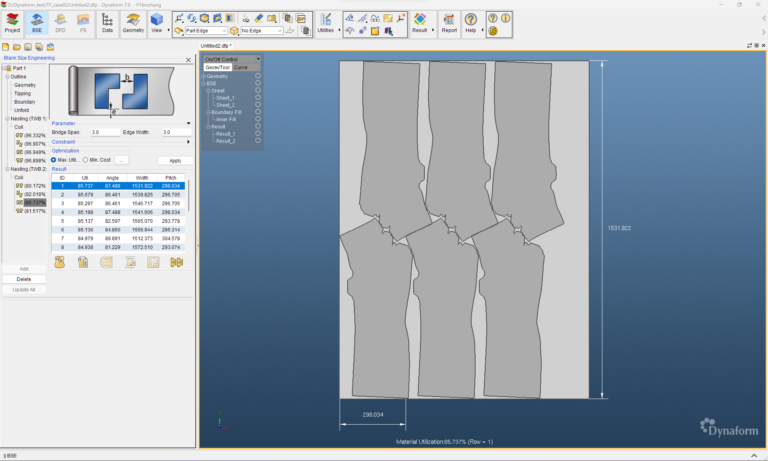

BSE is widely used for estimating blank size, along with blank nesting for maximum material usage, scrap & piece price. The plug-in is used to predict thinning, thickening & also to generate a forming limit diagram (FLD).

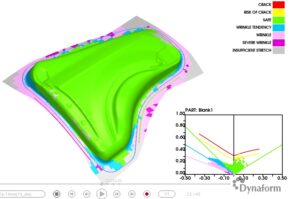

Formability Simulation (FS)
FS facilitates the rapid development & validation of single-station & progressive die designs. It uncovers hidden problem areas & enables designers to optimize designs based on accurate forming results.

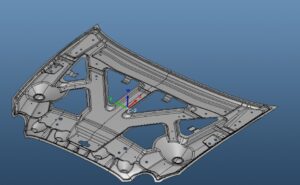

Die Evaluation (D-Eval)
Since most tooling designs are done in a CAD environment, DYNAFORM’s D-Eval Module was specially created to support and analyze CAD based tooling and engineering designs.

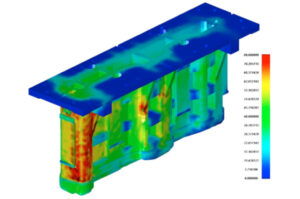

Die System Analysis (DSA)DSA efficiently predicts many stamping related concerns within the die production line. It is used to analyze scrap shedding/removal, die structural integrity & sheet metal transferring/handling.
This module helps users to go beyond identifying problem areas, by incorporating design optimization to improve performance and quality - reducing wrinkling, thinning and tearing.
DYNAFORM Modules in NX
BSE is a complete solution for accurately estimating blank size along with blank nesting for maximum material utilization, minimum scrap and piece costs—all within the familiar NX environment.
Analyze CAD Based Die Designs in NX. DYNAFORM’s D-Eval-in-NX Module was specially created to support and analyze CAD based tooling and engineering designs within the native NX environment.
